COMPLETED PROJECTS
CEMENTED CHIPBOARD GALLERY

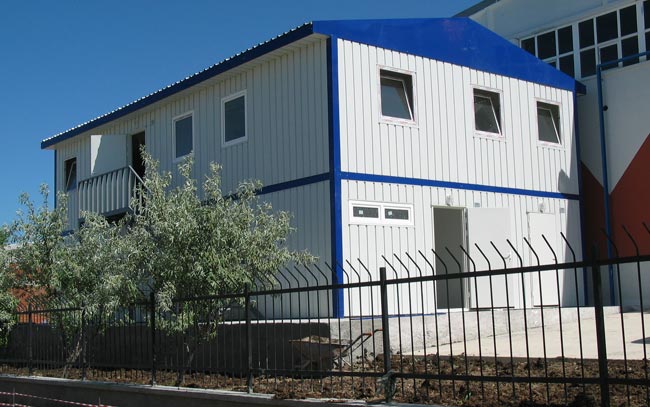

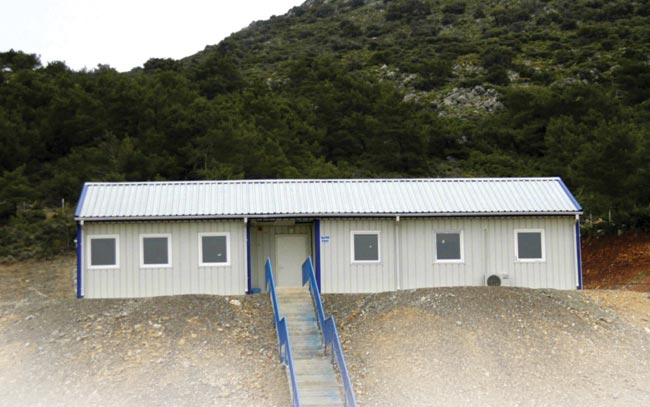

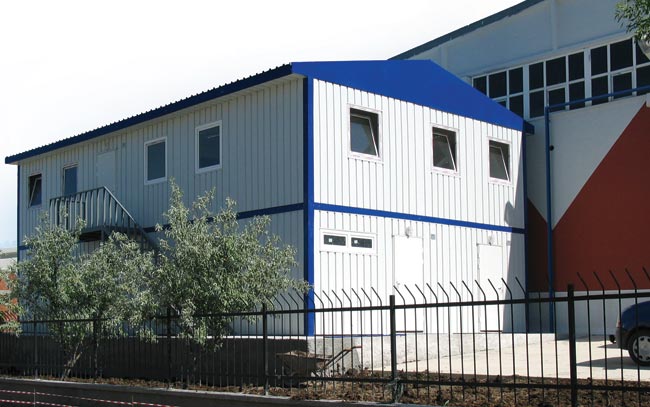

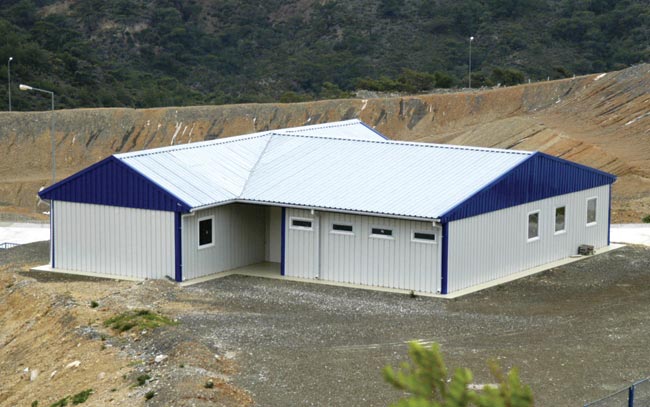

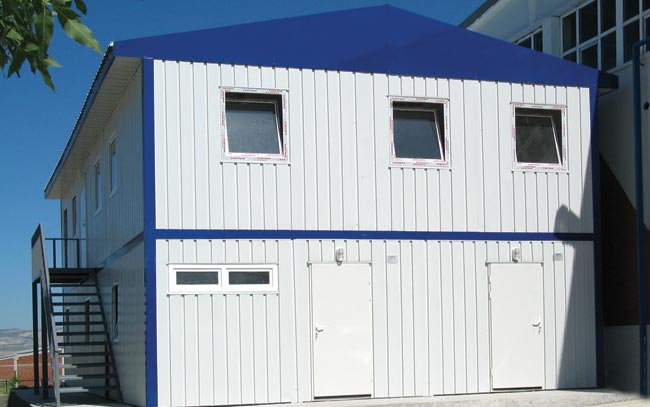

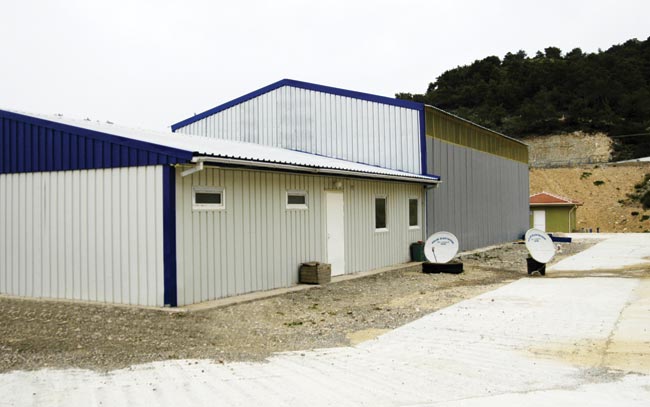

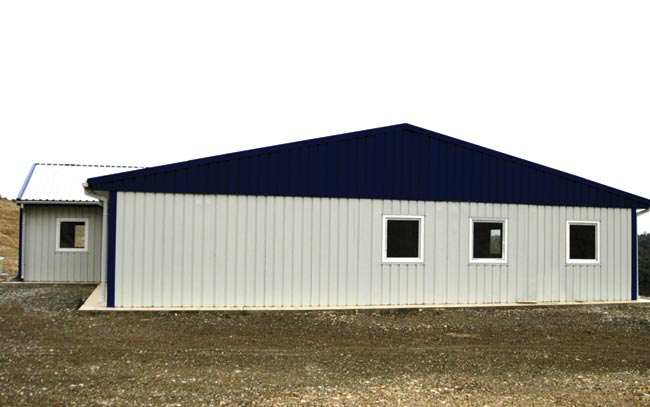

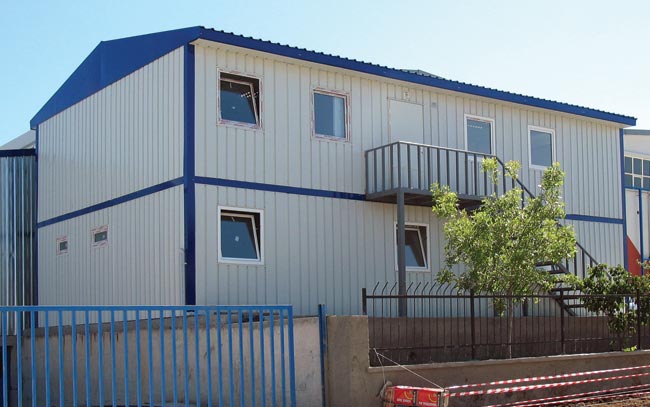

STEEL PANEL GALLERY
FLOOR PLANS
WORKSITE OFFICES

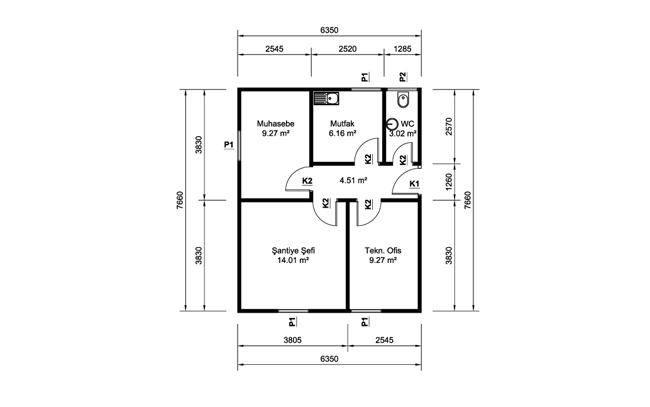

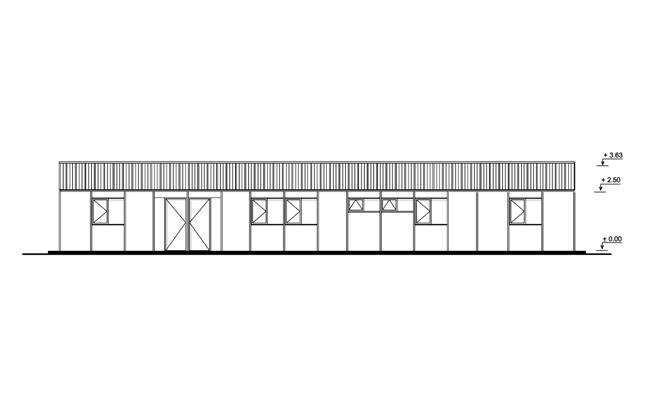

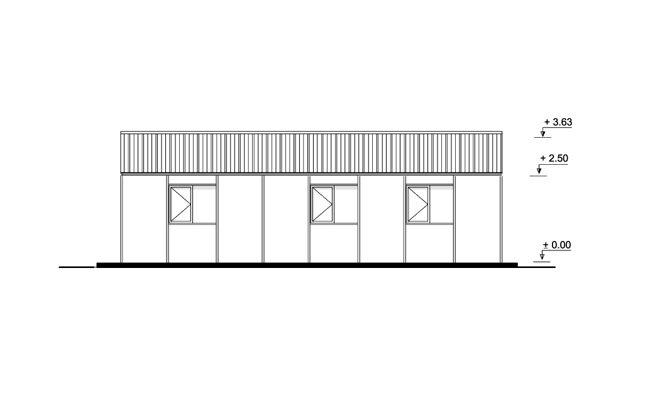

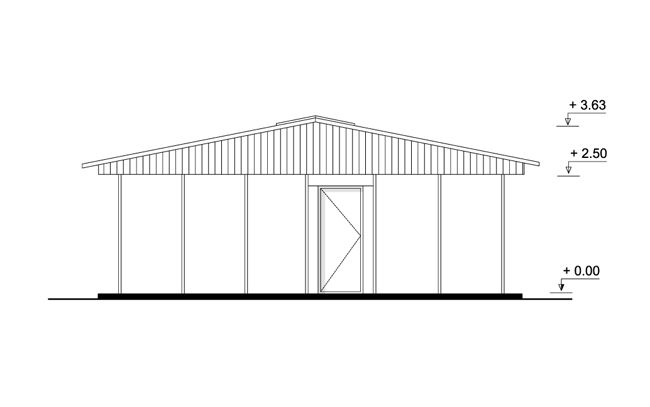

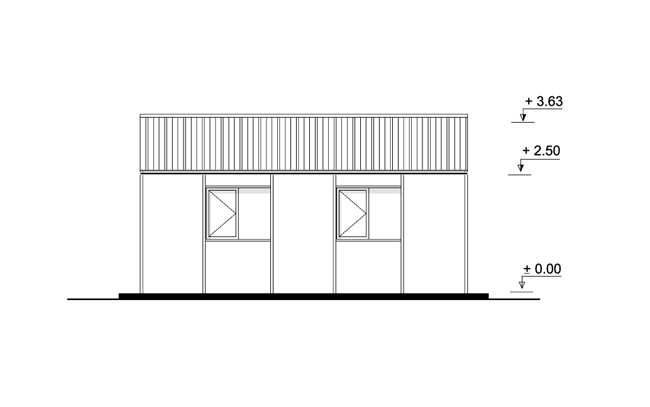

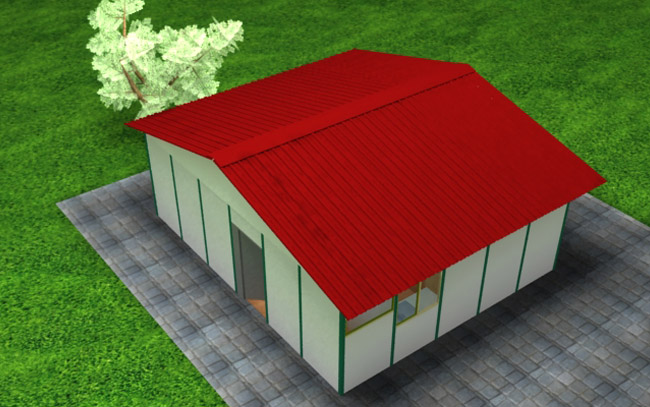

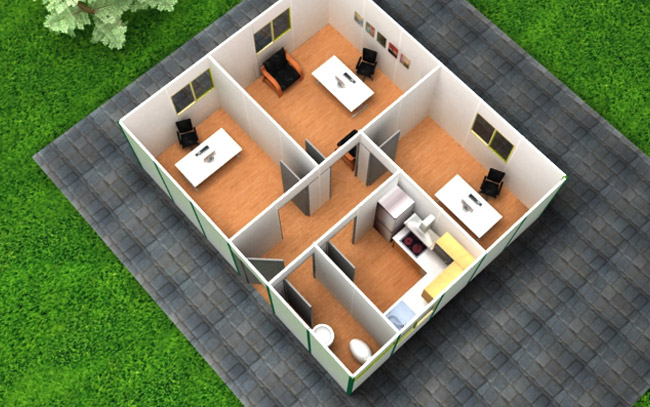

48.64 m2 Prefabricated Office 1

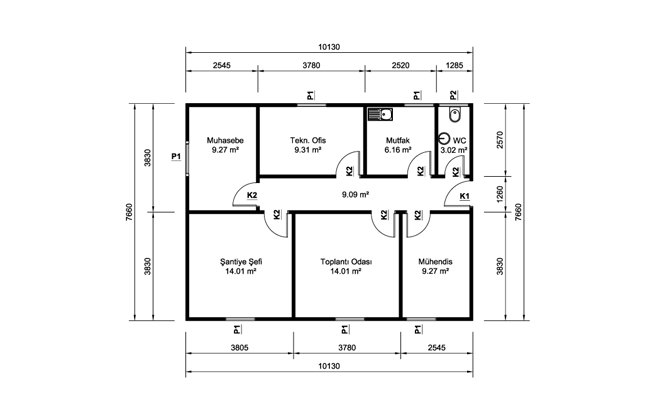

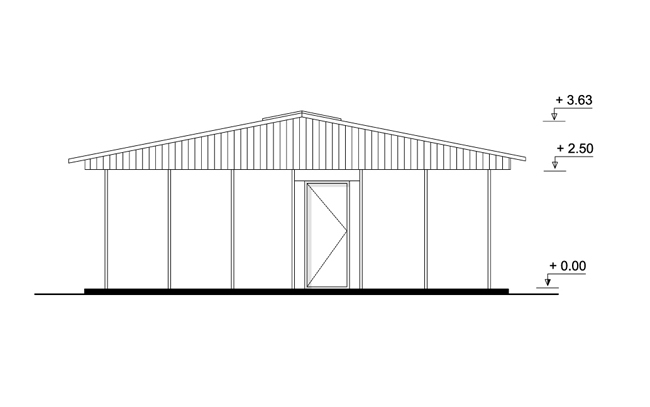

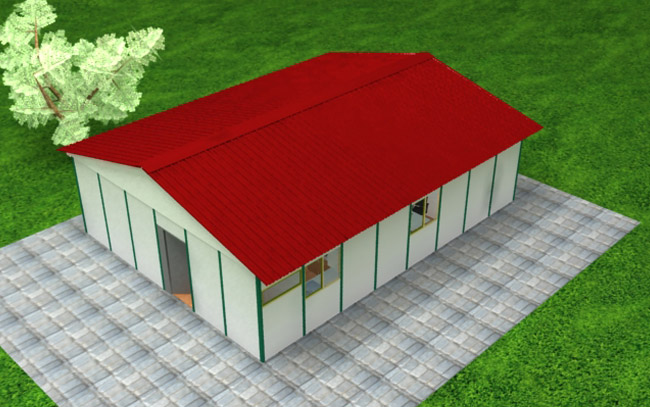

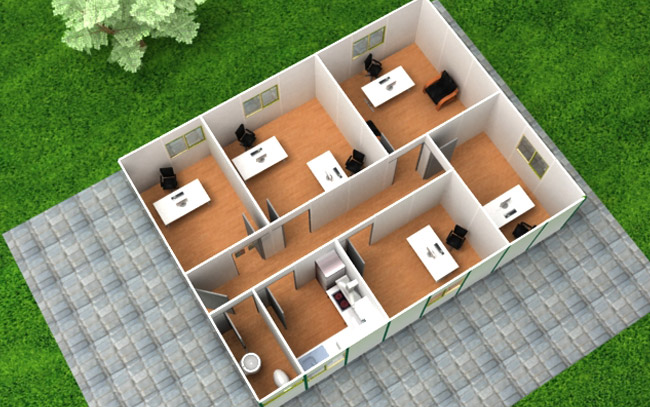

77.60 m² Prefabricated Office 2

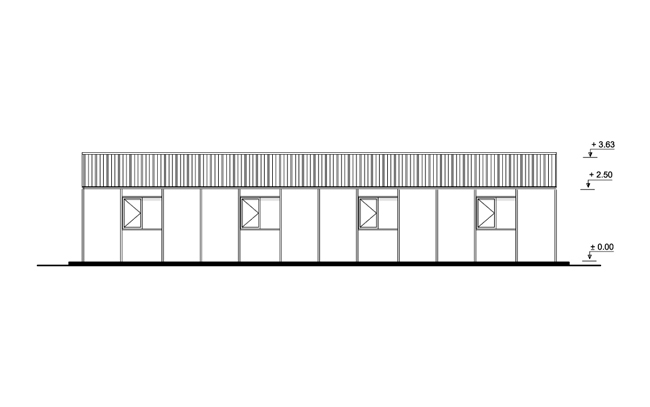

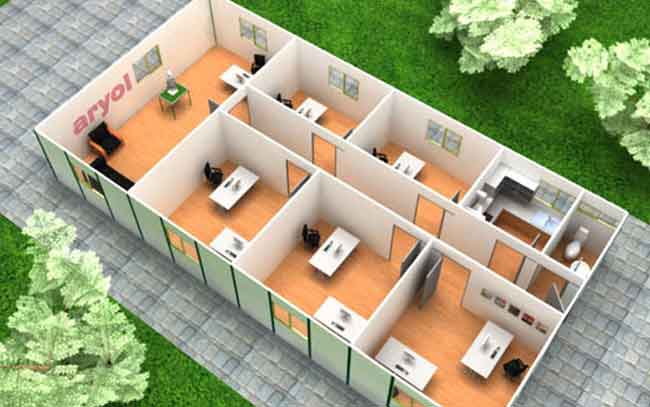

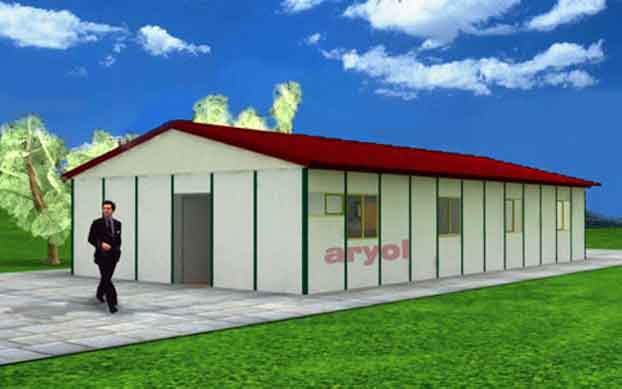

116.20 m² Prefabricated Office 3

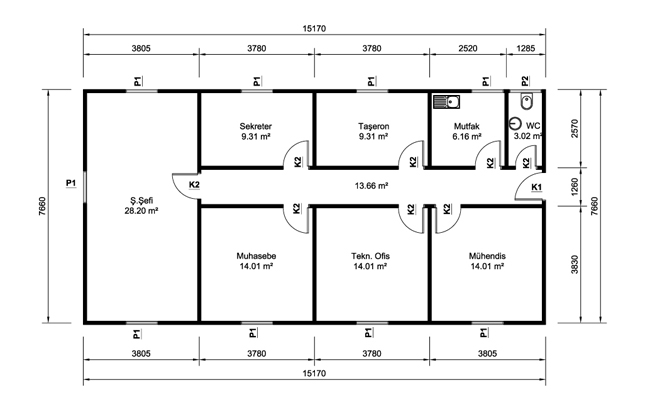

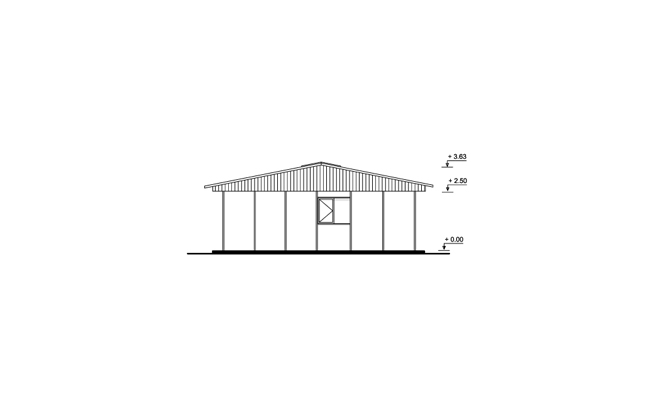

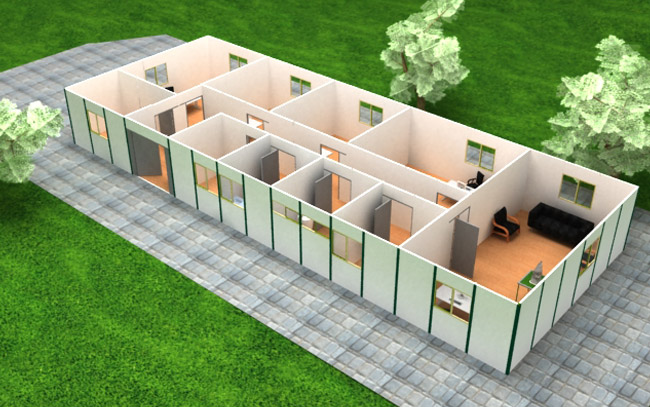

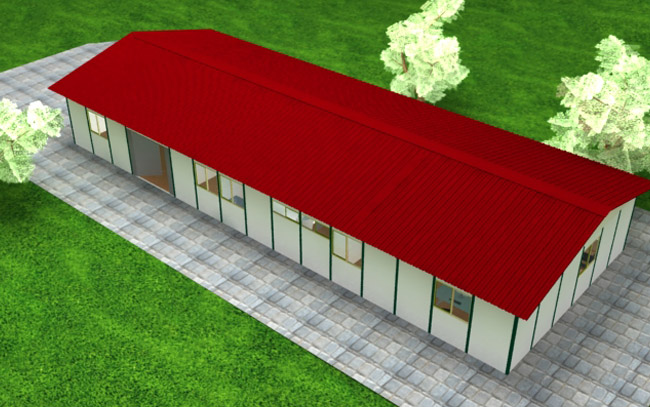

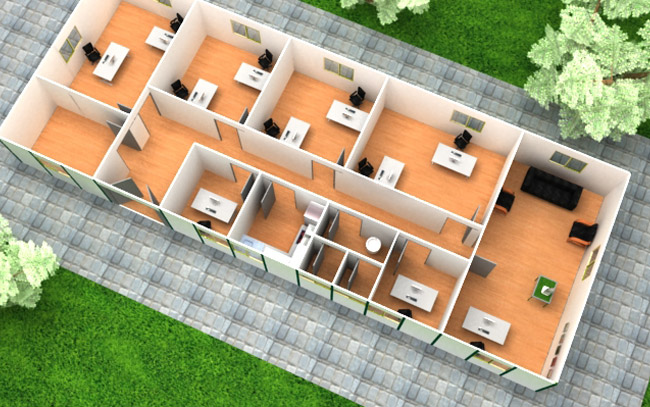

154.81 m² Prefabricated Office 4
WORKSITE DORMITORIES

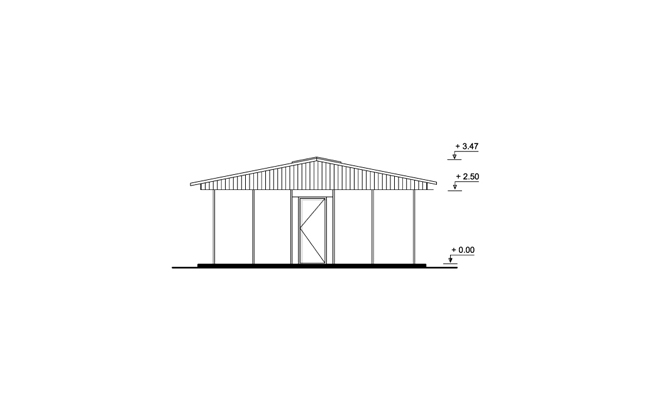

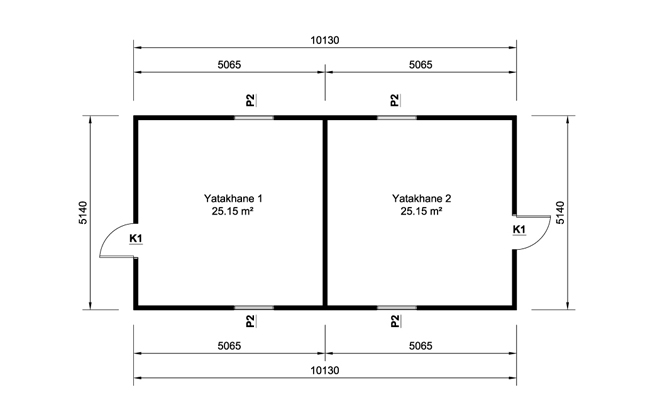

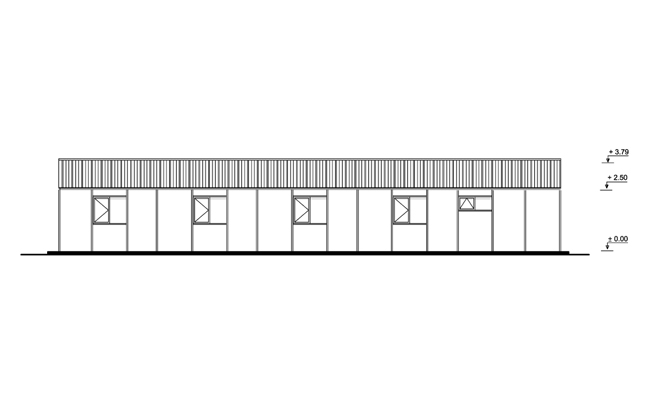

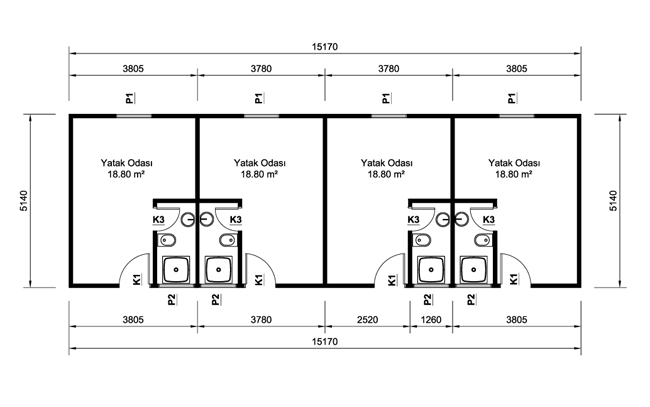

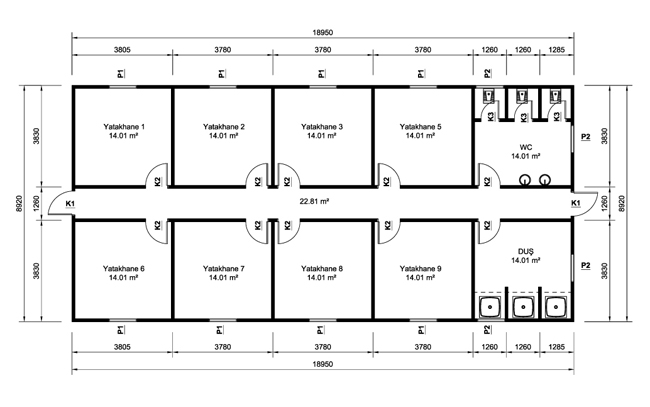

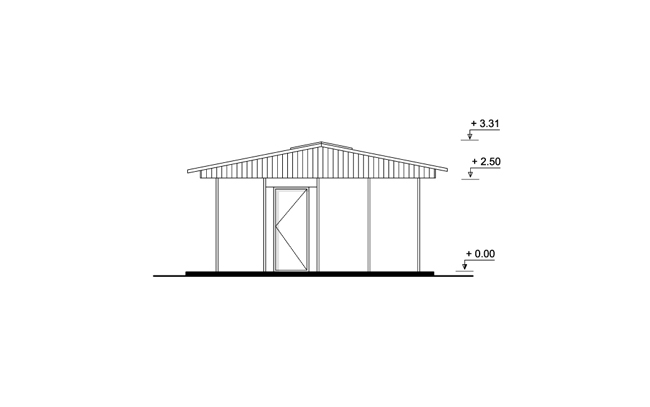

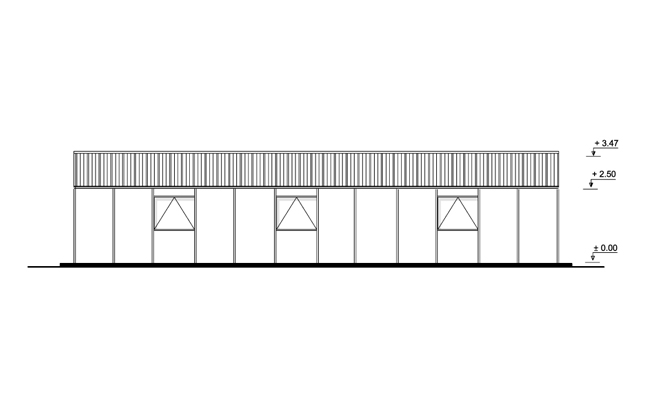

52.07 m² Prefabricated Dormitory 1 (28 people capacity)

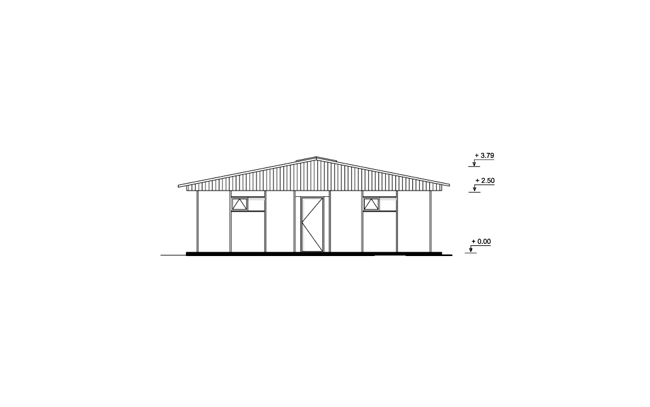

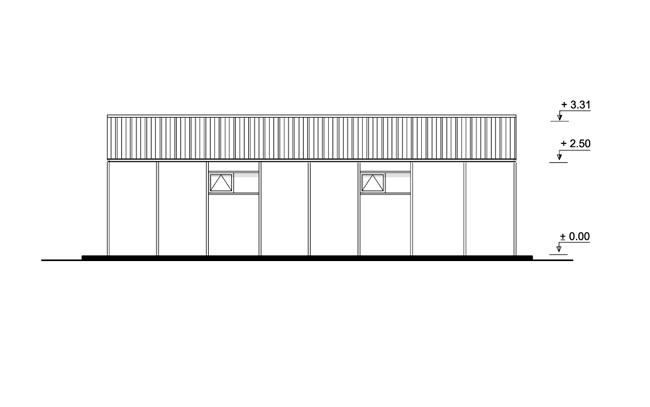

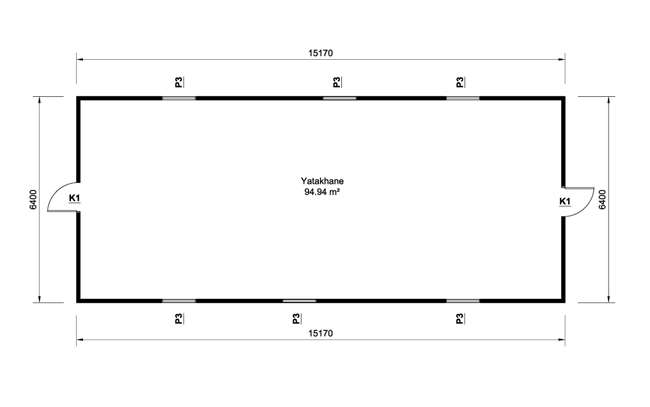

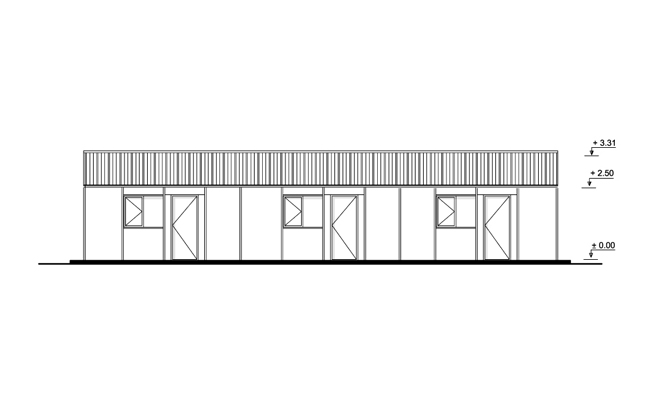

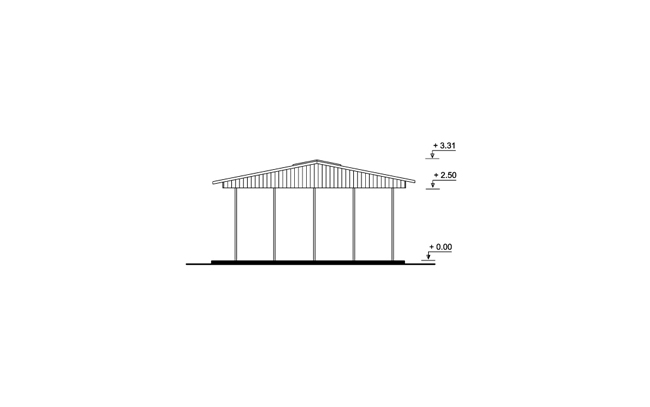

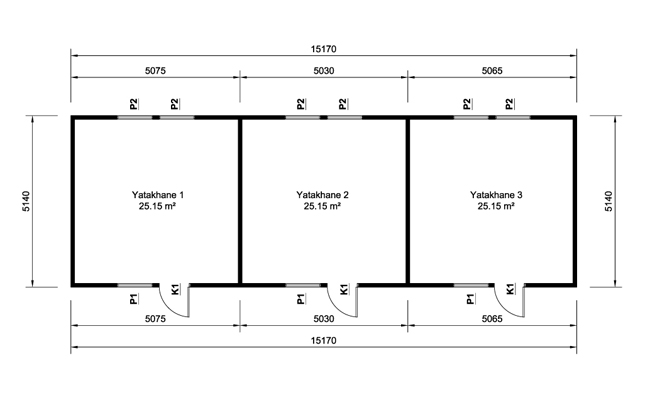

77.97 m² Prefabricated Dormitorye 2 (42 people capacity)
97.09 m² Prefabricated Dormitory 3 (44 people capacity)
169.03 m² Prefabricated Dormitory 4 (48 people capacity)
ŞANTİYE YEMEKHANELERİ

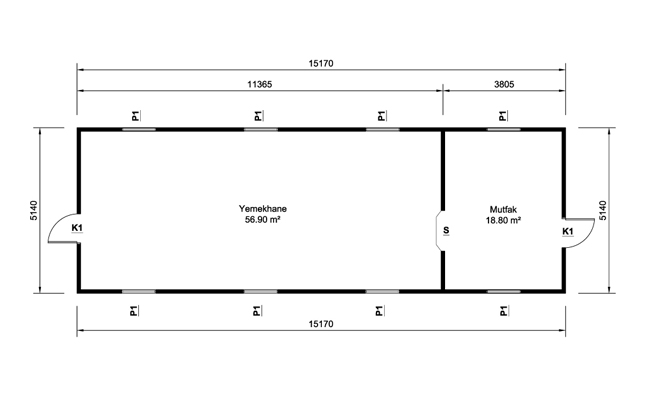

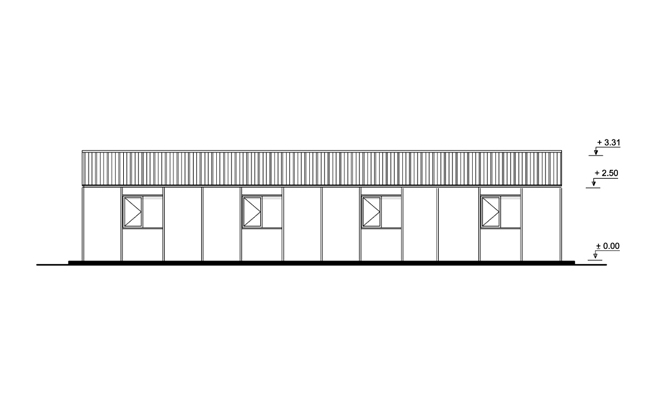

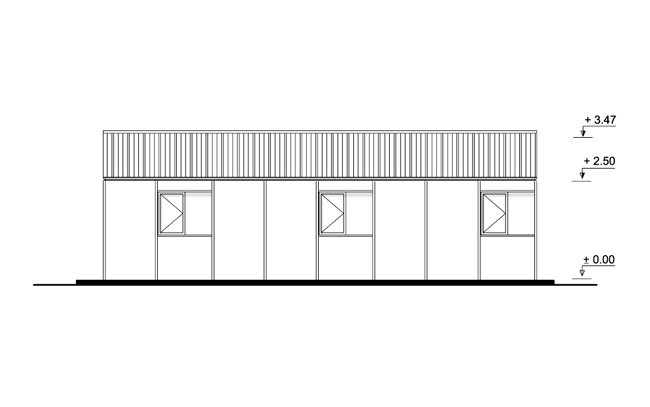

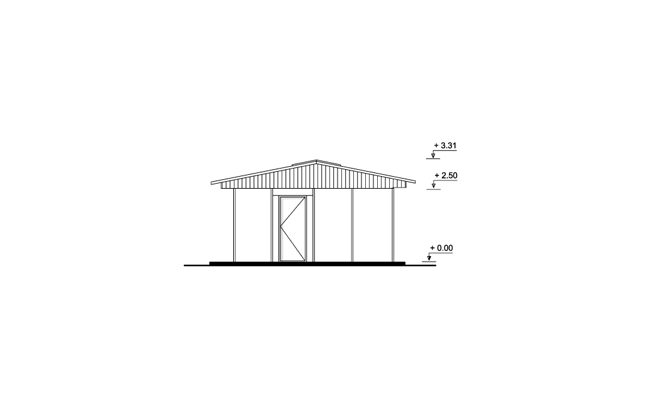

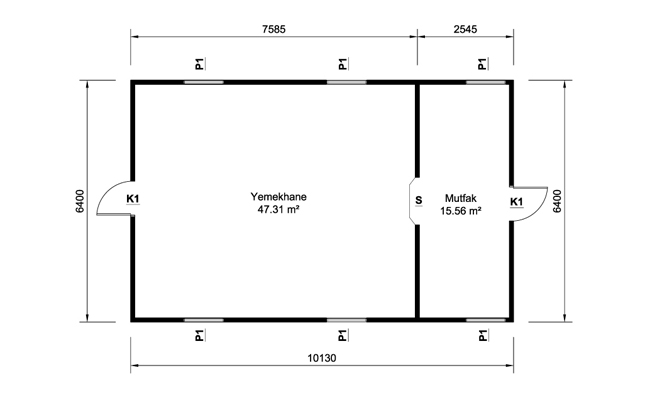

64.83 m² Prefabricated Dining Hall 1 (48 people capacity)
77.97 m² Prefabricated Dining Hall 2 (56 people capacity)

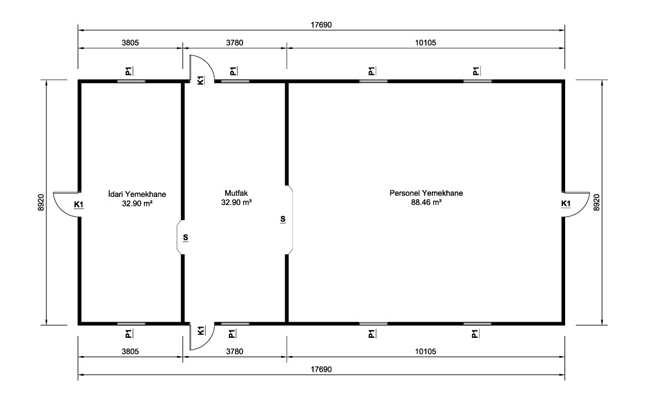

154.81 m² Prefabricated Dining Hall 3 (24+104 people capacity)
WORKSITE HOUSING

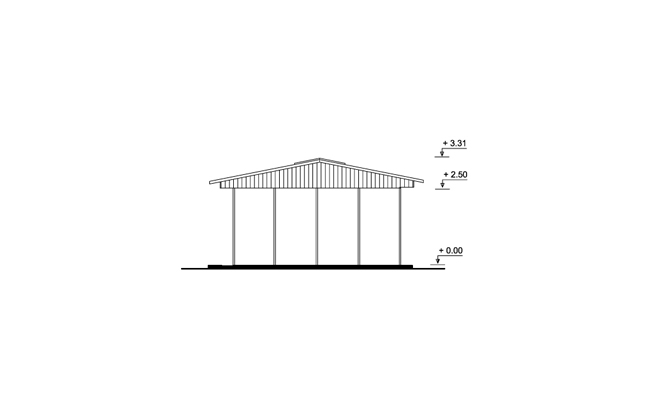

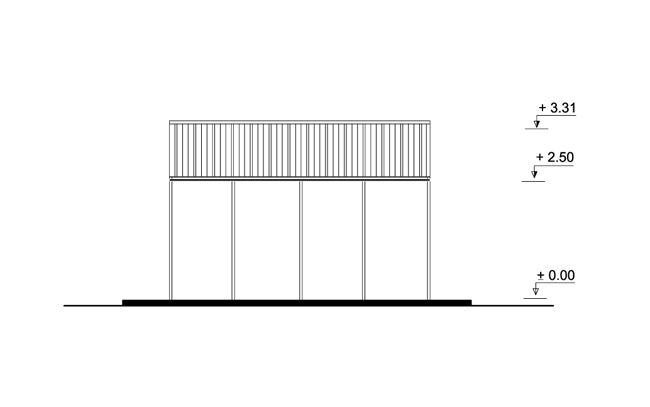

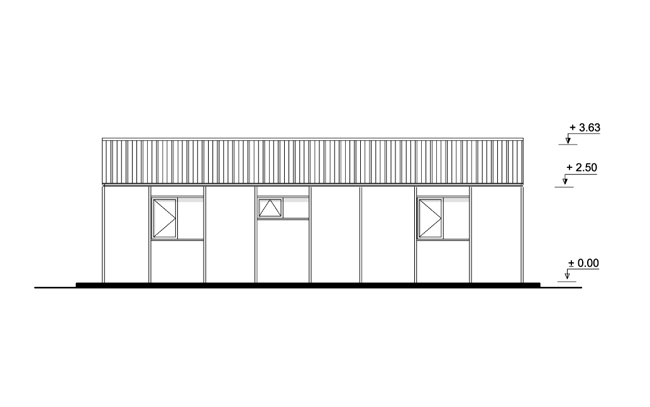

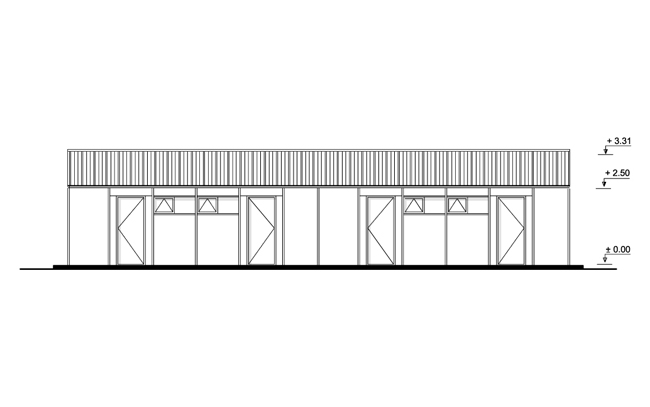

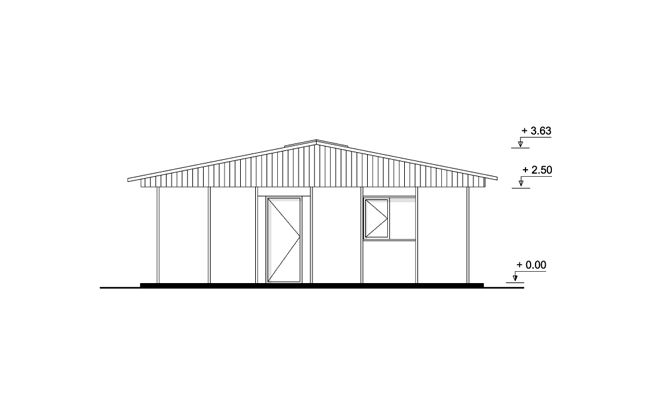

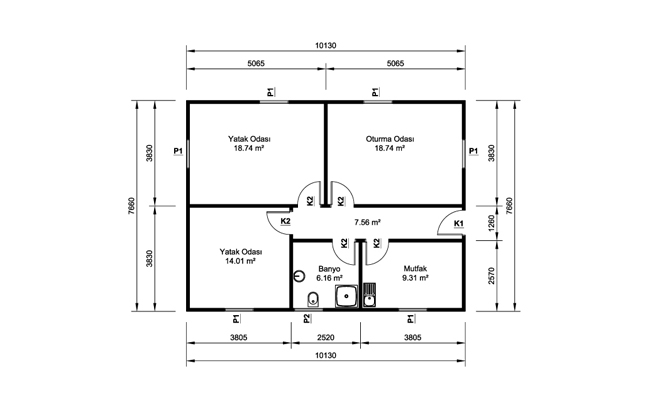

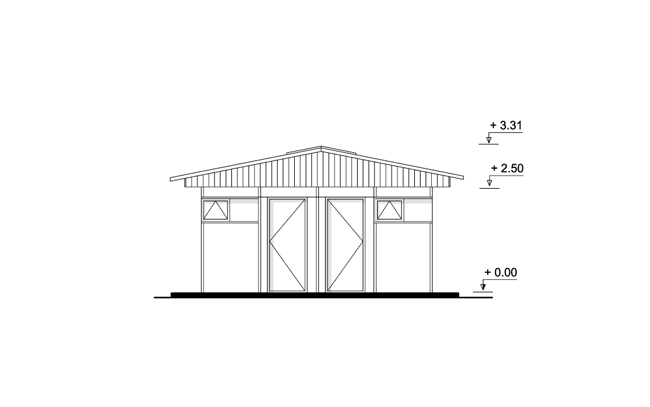

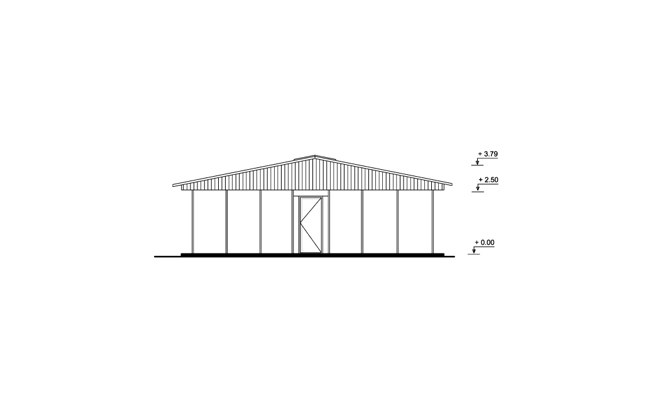

77.60 m² Prefabricated Housing 1 (4-6 people capacity)
78.59 m² Prefabricated Housing 2 (8 people capacity)
WORKSITE SHOWER - WC

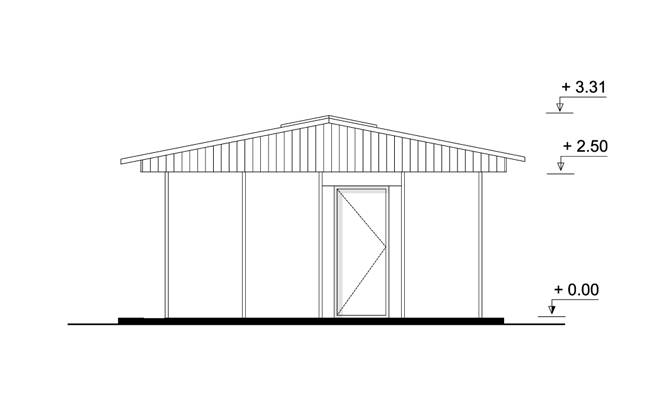

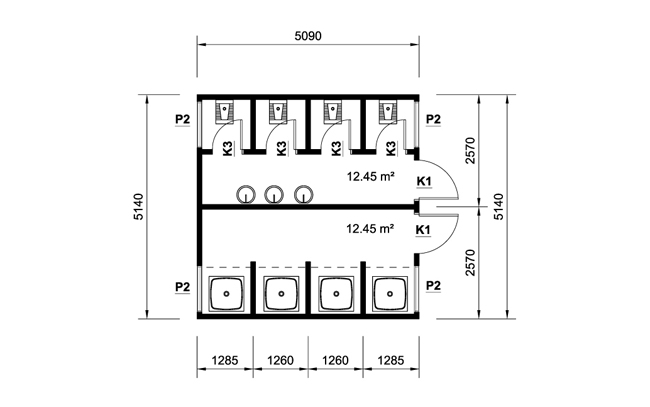

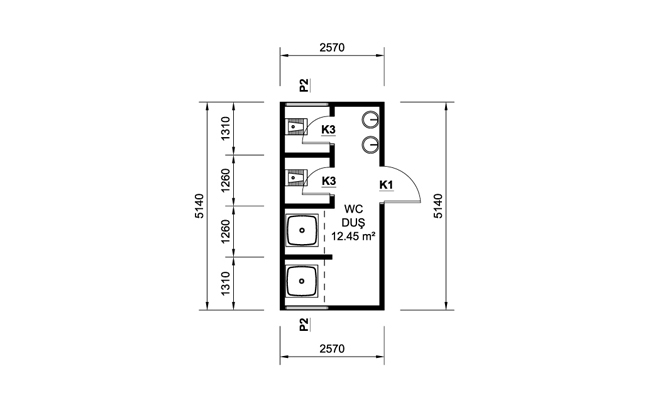

13.21 m² Prefabricated WC - Shower 1

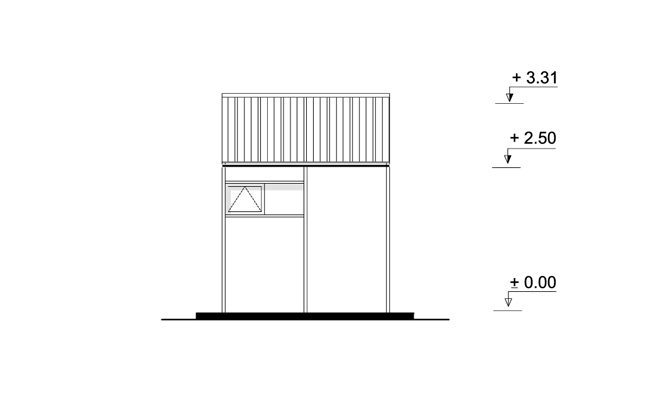

26.16 m² Prefabricated WC - Shower 2
TECHNICAL SPECIFICATIONS
LOADS:
Frame system designed to resist 80 kg/m2 snow weight, 102 km/hr wind and first degree earthquake conditions (TS 498)
DIMENSIONS:
Building width: between 5 - 12 meters
Building length: multiplies of 1.215 m
LOAD BEARING STRUCTURE:
Special bended galvanized, electrostatic powder coated capped profiles. Spaced multiplies of 1.26 meters
TRUSSES:
Spaced multiplies of 1.26 meters. Base and top profiles of trusses are bended profiles produced in roll form machine using galvanised steel.
WALLS:
Building Wall Height: 2500mm
Wall Width: 1250mm
Surfaces: 8mm cemented chipboard on the Cemented Chipboard Panels. In Sheet Metal Panels; Outer panel outer surface electrostatic painted film coated galvanized sheet, inner surfaces are 8mm cemented chipboard, carcass frame galvanized sheet.
Insulation: 35mm Polystyrene (16kg / m3-0.039W / mK) or 50 mm glasswool.
ROOF AND CEILING:
There are galvanized fringes on both sides of the building. Roof coating 0.50 trapeze galvanized sheet (27/200 form), ceiling insulation; 8mm glass wool mattress. Ceiling coating is ; 12.5 mm white plaster, green plaster suspended ceiling in wet spaces.
DOORS AND WINDOWS:
Outer doors: galvanized sheet and electrostatic powder painted. Interior doors are American panel, Rall 9002. The windows are PVC and double glazed.
