PREFABRICATED HANGARS

The prefabricated hangar, warehouse, factory structures are delivered immediately and M profile (Sigma) is used as weight bearing structure. Carrier steel M profiles are produced in the profile machines which are found to be more load bearing than than the other profiles. On the carrier profiles, non-insulated sheet or insulated sandwich panels are used. In prefabricated hangars, the ridge height is 8m and the width is upto 20m. The lengths are as long as desired.

Filiz Eyuboglu
Aryol Prefabricated Construction San. A.S.
Aryol Catalog

PREFABRICATED HANGARS

COMPLETED PROJECTS

PREFABRICATED HANGAR GALLERY

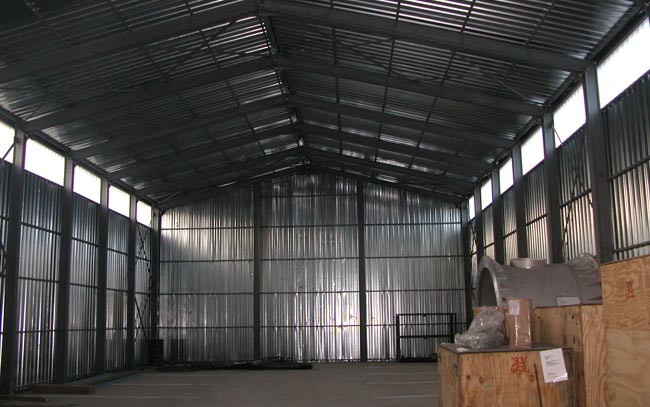

  • prefabricated hangar 1
  • prefabricated hangar 2

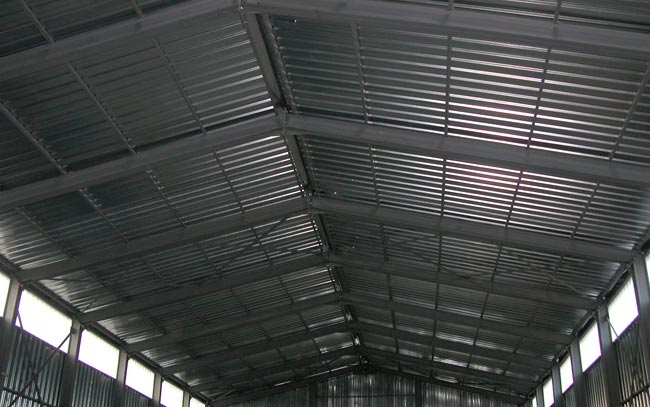

  • prefabricated hangar 3
  • prefabricated hangar 4
  • prefabricated hangar 5

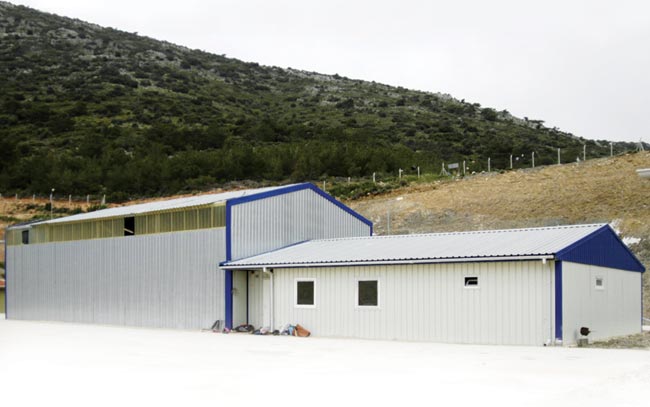

  • prefabricated hangar 6

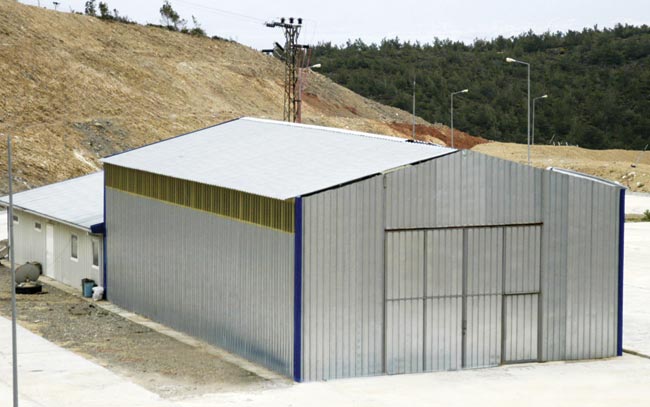

  • prefabricated hangar 7

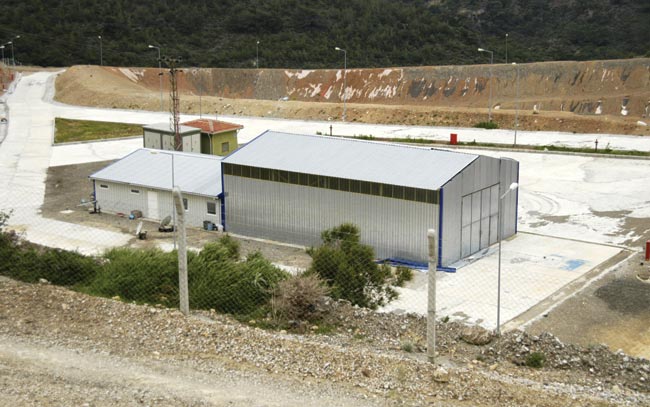

  • prefabricated hangar 8

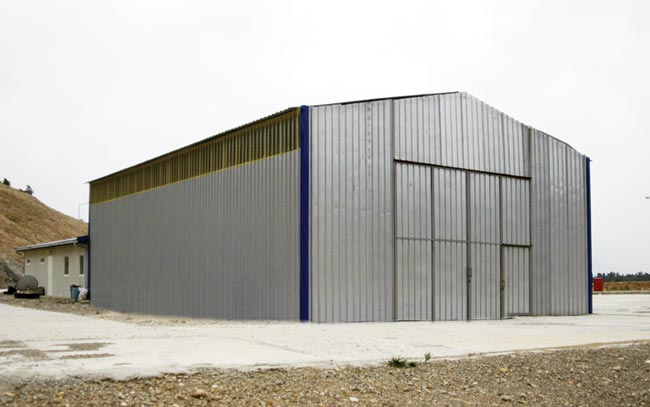

  • prefabrik hangar 9

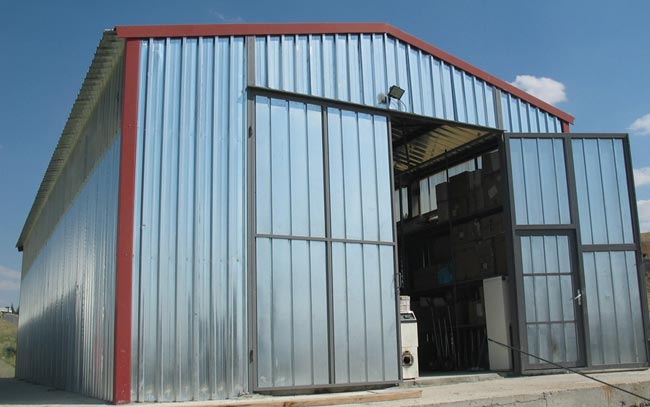

  • prefabricated hangar 10
  • prefabricated hangar 11

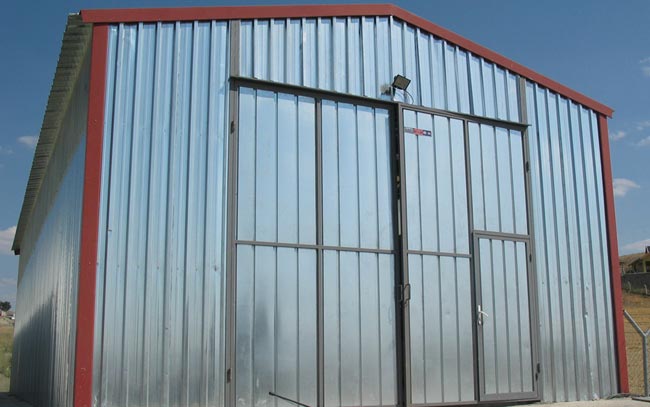

  • prefabricated hangar 12
  • prefabricated hangar 13

TECHNICIAL SPECIFICATIONS

LOADS

Frame system 184 kg / m² Snow Load, 130 km / h Wind Load and 1st Degree Earthquake Zone static calculations. (TS 498)

DIMENSIONS

Building Span: Upon request from10.00 m to 20.00 m Building Length: Upon request multiplies of 3.00 or 4.00 m

LOAD BEARING STRUCTURE

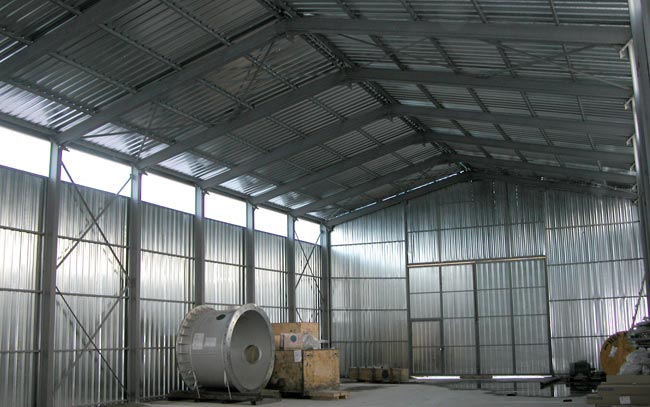

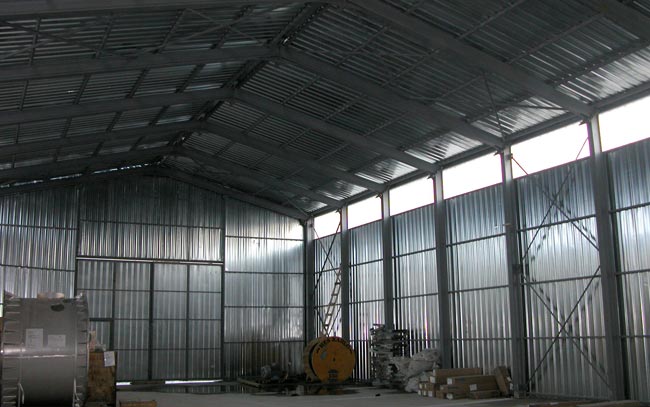

Columns and beams made of bended 240 / 3mm to 2m 270/4 mm profiles are used as frame. These frames are connected with box profile beams.

ROOF AND FACADE COATING

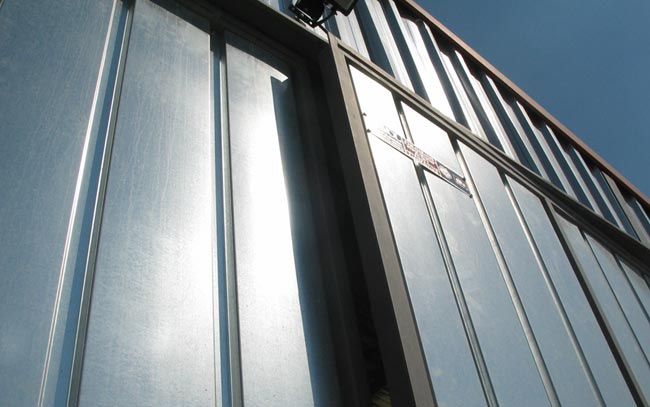

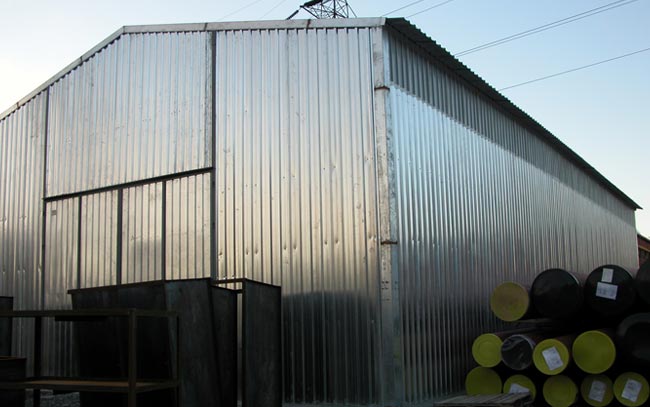

Roof and vertical coatings are 0.50 mm trapezoidal galvanized sheet metal. On the vertical walls there are CRP light bands on both sides of the building.

DOORS

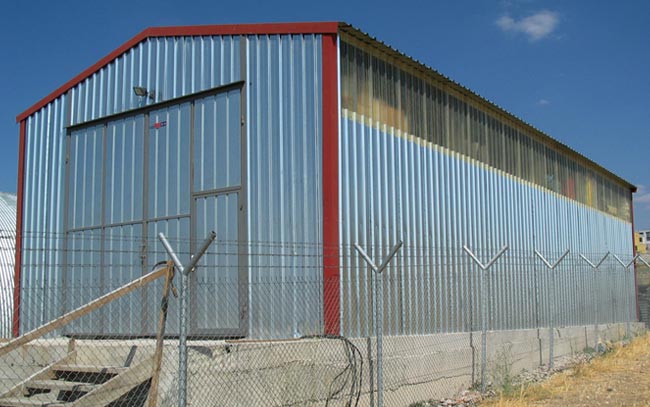

Hangers are equipped with full-opening double-leaf doors. One of the wings has a service window.

Technical Catalog

MISSION

In our prefabricated constructions, maintaining low price - high quality balance, with least wastage while producing our buildings.

To increase exports and provide customer satisfaction and needs at the highest level with our renewed designs which already exports to about 60 countries.
